Variable Frequency Drives for Industrial Power Control

VFDs for Pumps and Motors in Sierra Leone

Variable frequency drives help control motor speed, reduce mechanical shock, improve process stability, and lower energy waste in pumps, fans, compressors, conveyors, and industrial equipment.

Sun Energy supplies EV series VFD options for Sierra Leone factories, workshops, farms, water systems, and generator-powered sites.

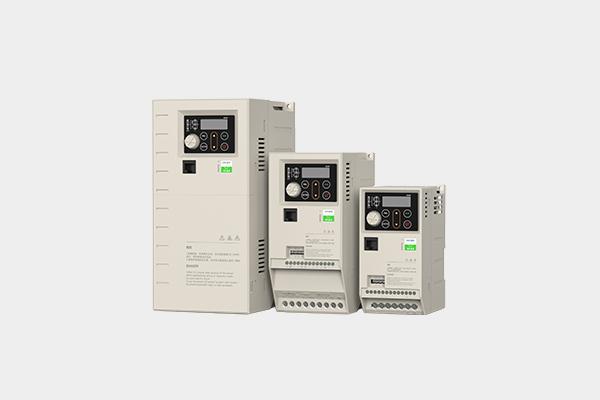

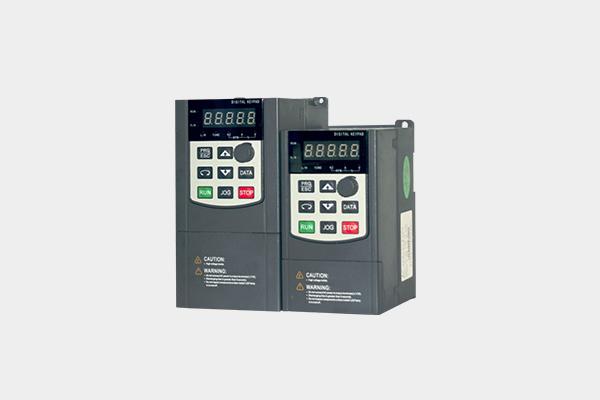

Product Range

Series	Suggested English name	Best fit
EV510A	High-performance current vector VFD	Heavy-duty pumps, fans, compressors, conveyors
EV510H	High-performance current vector VFD	Larger or demanding industrial loads
EV510E	Synchronous motor drive	Synchronous motor and specialized equipment
EV210	Compact high-performance VFD	Small pumps, fans, and light machinery
EV200	Compact high-performance VFD	Basic motor speed control

Key Product Details

The following details describe the EV510A VFD option. Final selection should be checked against motor nameplate data and project requirements.

Item	Product detail
EV510A positioning	High-performance current vector inverter
Core message	Vector heavy load, strong output
Operating temperature option	-10C to +40C
Low-speed capability	High torque at low frequency
Overload option	Up to 1.8x overload capacity
Warranty option	18-month warranty
Control functions	Motor protection, multiple frequency sources, simple PLC/multi-speed operation
Additional functions	Multiple communication modes, automatic voltage regulation, high low-frequency torque

Why VFDs Matter Locally

Many factories and water systems run motors directly from grid or generator power. Direct starting can create high inrush current, mechanical shock, and unstable pressure or flow. A VFD allows the motor to start smoothly and run only as fast as the process needs.

For Sierra Leone sites, this is useful where:

• electricity is expensive;
• generator capacity is limited;
• pumps start and stop frequently;
• pressure or flow must stay stable;
• equipment wear must be reduced.

Common Applications

Application	VFD benefit
Water pump	Soft start, pressure control, energy saving
Fan or blower	Speed control instead of damper waste
Conveyor	Smooth start and controlled speed
Compressor	Lower starting shock and better load matching
Crusher or heavy machinery	Strong torque and motor protection
Generator-powered site	Lower inrush current than direct-on-line start

Model Selection Questions

To select a VFD, we need:

1. Motor power in kW or HP.
2. Input voltage and phase.
3. Motor type: standard induction motor or synchronous motor.
4. Application: pump, fan, conveyor, compressor, or other machine.
5. Load type: light, normal, or heavy duty.
6. Control need: simple speed control, pressure control, PLC, or communication.

Configuration Items to Confirm

Item	Status
EV510A / EV510H difference	To confirm
EV210 / EV200 difference	To confirm
Full power range	To confirm
Input voltage groups	To confirm
Communication protocols	To confirm
Protection functions	To confirm

Request VFD Model Selection

Send the motor nameplate, application, voltage, and load description. We will recommend the right EV series VFD and control approach.

Request VFD Model Selection
